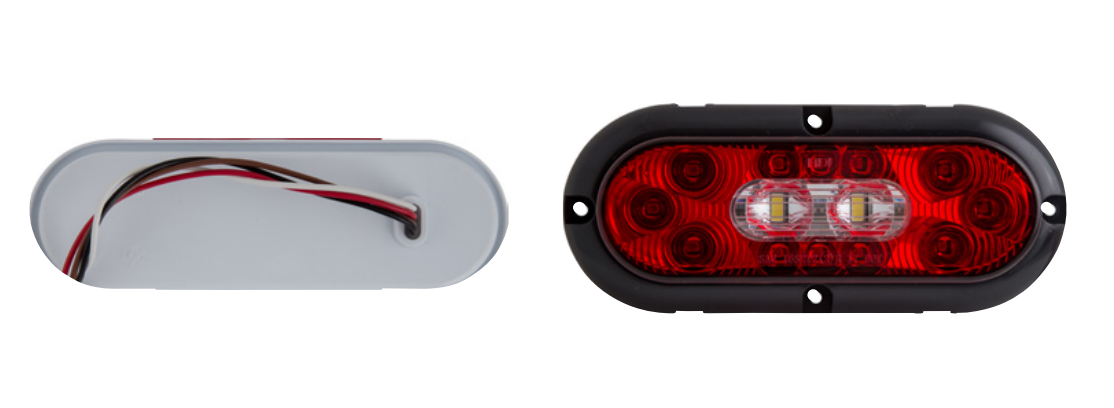

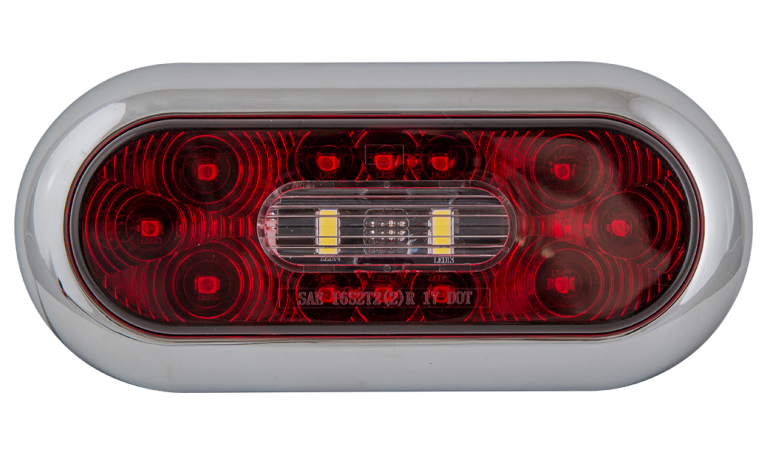

6" Oval Combination Stop/Turn/Tail With Backup Light, Surface Mount - HD61014RW

6" Oval Combination Stop/Turn/Tail With Backup Light — Surface Mount (HD61014RW)

• LED: 14 SMD (Red/White)

• Voltage Range: 7.5–14 VDC

• Current Draw: 159 mA (Stop/Turn High), 40 mA (Tail Low), 161 mA (Backup)

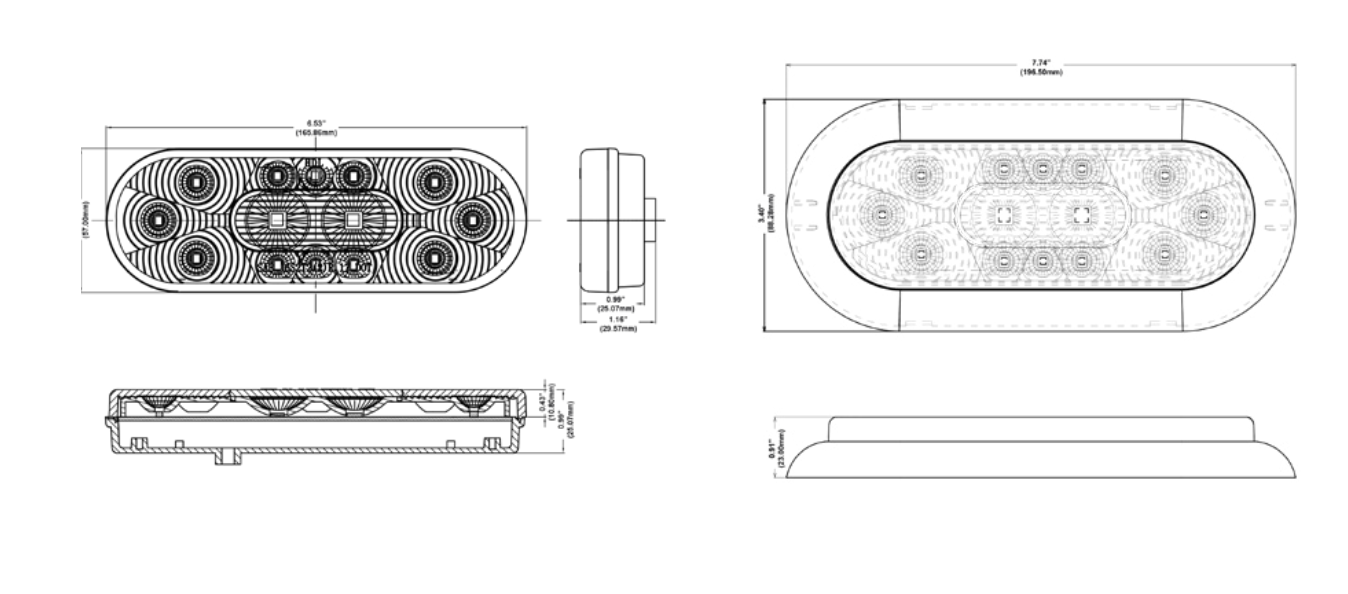

• Dimensions: 7.74" × 3.40" × 0.91" (surface-mount body with chrome bezel)

• Lens/Body: Impact-resistant polycarbonate lens; ABS housing; vacuum-chrome diode surround; ABS chrome bezel included

• Wiring: Hardwired 4-wire design with shared ground (no connector)

• Compliance: DOT/SAE STI 13 P2; E-mark E4 1734; CE; RoHS

• Mounting: Surface mount; 6" oval combination STT + backup
